Product Description
Reduced Graphene Oxide (rGO) is a high-performance graphene nanomaterial produced through a modified Hummers oxidation process followed by controlled chemical reduction. It possesses excellent electrical conductivity, superior mechanical strength, high thermal conductivity, and outstanding compatibility with polymers, coatings, composites, batteries, and conductive materials. The material is engineered for advanced industrial and research applications requiring multifunctional nanomaterial performance.

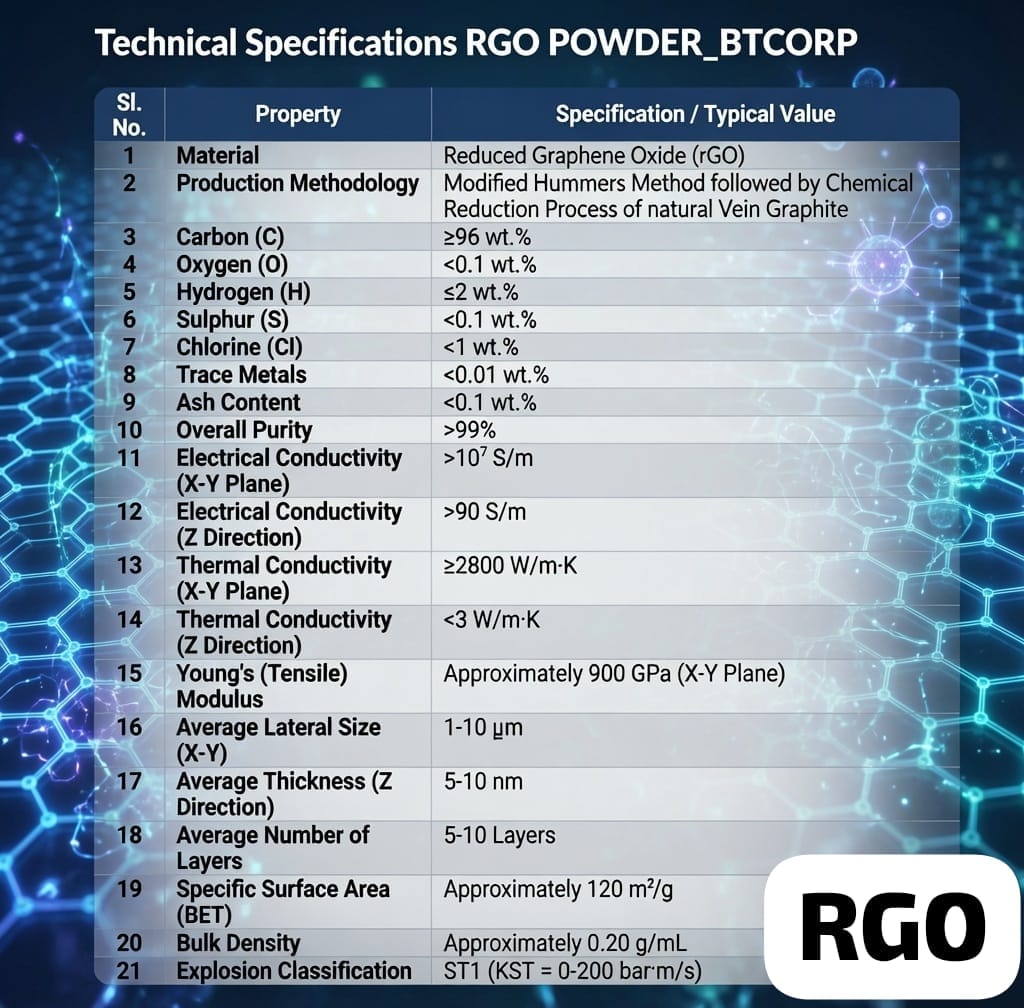

Technical Specifications RGO POWDER_BTCORP
| Sl. No. | Property | Specification / Typical Value |
| 1 | Material | Reduced Graphene Oxide (rGO) |
| 2 | Production Methodology | Modified Hummers Method followed by Chemical Reduction Process of natural Vein Graphite |
| 3 | Carbon (C) | >96 wt.% |
| 4 | Oxygen (O) | <0.1 wt.% |
| 5 | Hydrogen (H) | >2 wt.% |
| 6 | Sulfur (S) | <1 wt.% |
| 7 | Chlorine (Cl) | <1 wt.% |
| 8 | Trace Metals | <0.01 wt.% |
| 9 | Ash Content | <0.1 wt.% |
| 10 | Overall Purity | >99% |
| 11 | Electrical Conductivity (X–Y Plane) | >10⁷ S/m |
| 12 | Electrical Conductivity (Z Direction) | >90 S/m |
| 13 | Thermal Conductivity (X–Y Plane) | ≥2800 W/m·K |
| 14 | Thermal Conductivity (Z Direction) | <3 W/m·K |
| 15 | Young’s (Tensile) Modulus | Approximately 900 GPa (X–Y Plane) |
| 16 | Average Lateral Size (X–Y) | 1-10 µm |

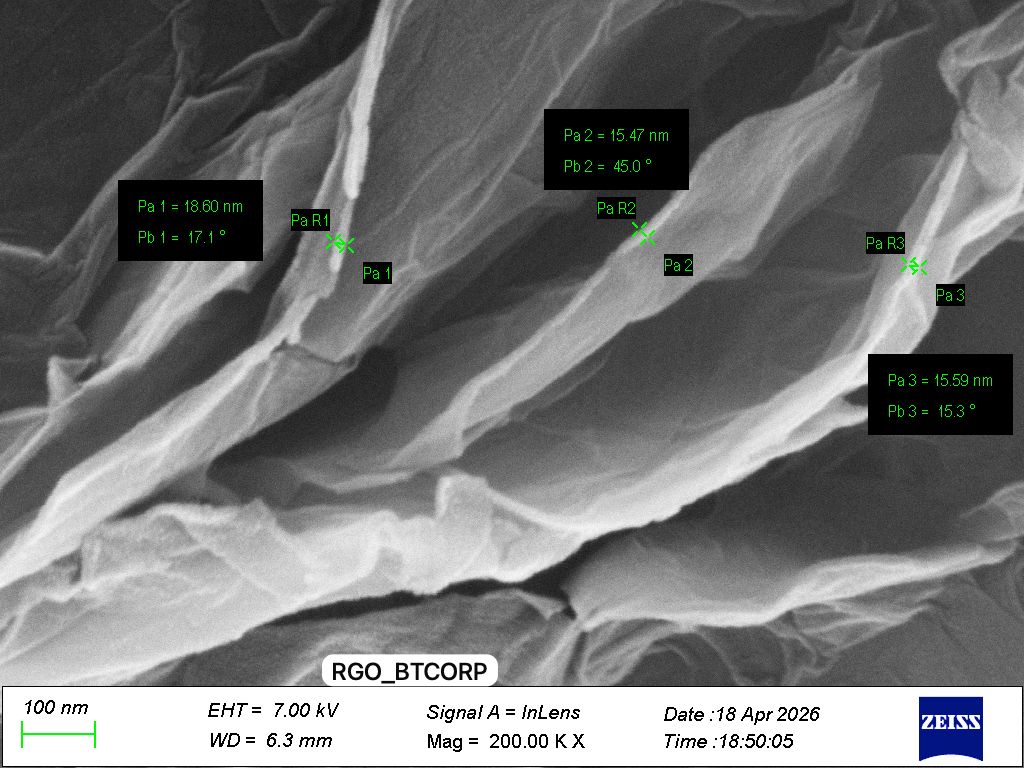

| 17 | Average Thickness (Z Direction) | 5-10 nm |
| 18 | Average Number of Layers | 5-10 Layers |
| 19 | Specific Surface Area (BET) | Approximately 120 m²/g |
| 20 | Bulk Density | Approximately 0.20 g/mL |
| 21 | Explosion Classification | ST1 (KST = 0–200 bar·m/s) |
Key Features
- High electrical conductivity
- Exceptional in-plane thermal conductivity
- Excellent mechanical reinforcement
- High aspect ratio graphene sheets
- Lightweight nanomaterial with excellent dispersion characteristics
- Superior barrier and anti-corrosion properties
- Excellent compatibility with epoxy, polyurethane, acrylic, polyester, silicone, rubber, and cementitious systems
- Suitable for conductive, structural, and multifunctional composite applications
Recommended Applications
- Epoxy and polyurethane nanocomposites
- Anti-corrosion coatings
- Conductive coatings and paints
- EMI shielding materials
- Battery and supercapacitor electrodes
- Conductive inks
- Polymer masterbatches
- Structural composites
- Thermal interface materials
- Adhesives and sealants
- Cement and concrete reinforcement
- Rubber and elastomer reinforcement
- Aerospace and automotive composites
- Energy storage devices
Packaging
Available in laboratory, pilot-scale, and commercial packaging:
- 100 g
- 250 g
- 500 g
- 1 kg
- Bulk /Customized Grade /industrial packaging available on request.
Storage
Store in a tightly sealed container in a cool, dry environment away from moisture and direct sunlight. Avoid prolonged exposure to humidity to maintain optimum material performance.
Ask for updated TDS & MSDS at btc@bt-corp.co
